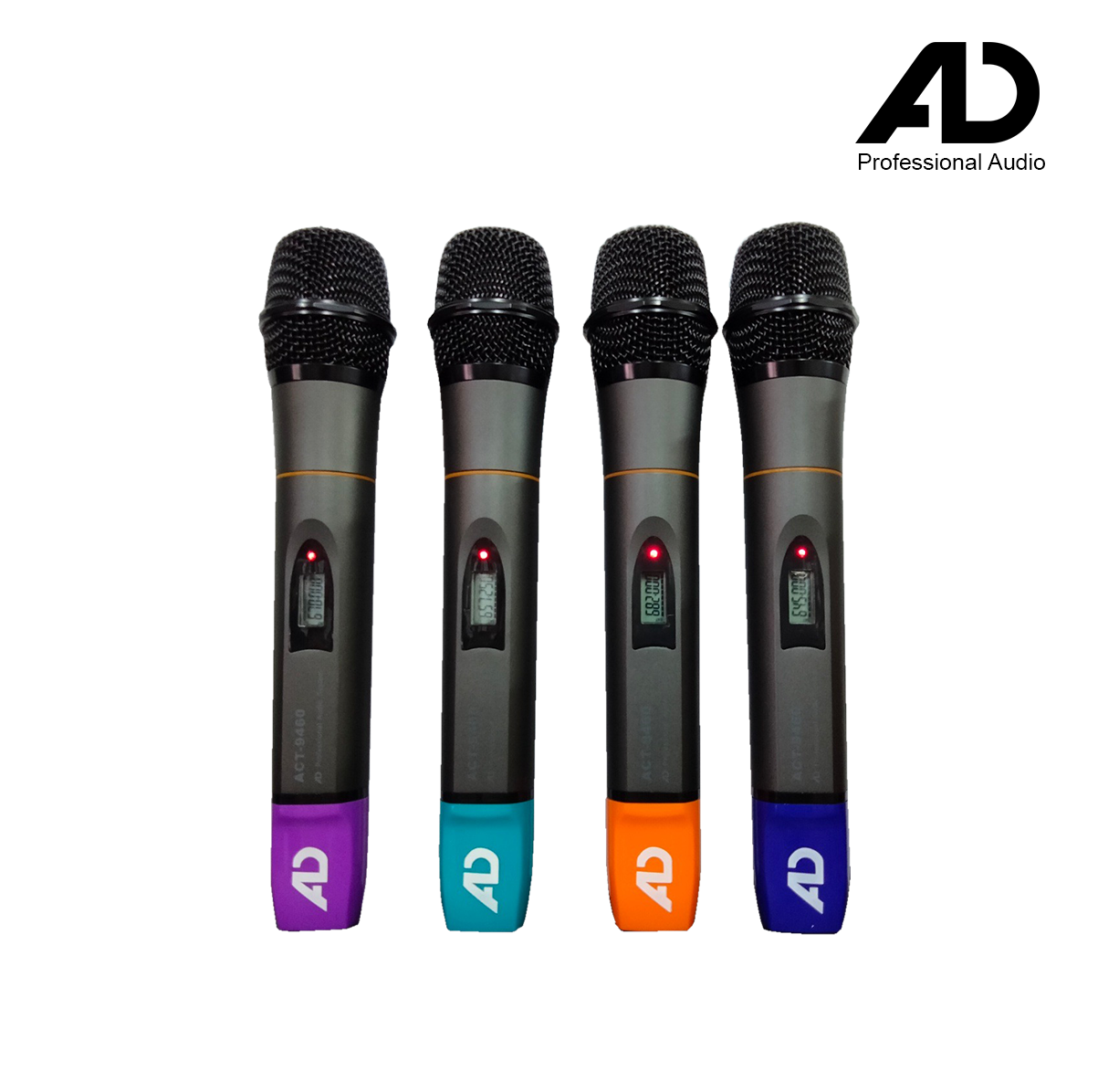

AD ACT 9460 / 4 Wireless Microphone / Professional Wireless Microphone System/ UHF 650MHz / 200CH / AD

AD ACT 9460 / 4 Wireless Microphone / Professional Wireless Microphone System/ UHF 650MHz / 200CH / AD

₱19,500.00 PHP
₱19,500.00 PHP
Sale Sold out
Shipping calculated at checkout.
  • AD DVON ACT-9460
  • A. OVERALL SYSTEM
  • OSD Mode: PULL LOCK
  • Operating Frequency: 520MHz~(optional)
  • Modulation Mode: FM
  • Maximum Deviation: +45
  • Frequency Response: 80Hz~15KHz (+3dB)
  • Image Rejection: <1%
  • Operating Temperature: -10°C~+50°C
  • B. HANDHELD TRANSMITTER
  • Output Power: 8~30mW
  • Harmonic Interference Ratio: -50dB
  • Battery: 2pcs AA Type Alkaline Battery
  • Cartridge: Dynamic
  • C. TIE-CLIP TRANSMITTER
  • Output Power(Lowest): 4~6mW Output Power(Highest): 20~30mW
  • Harmonic Interference Ratio: -50dB
  • Battery: 2pcs AA Type Alkaline Battery
  • Cartridge: Single Polar Pattern Capacity Microphone
  • D. RECEIVER
  • Sensitivity: 12dBuV(80dB S/N)
  • Sensitivity Range: 12~32dBuV
  • Harmonic Interference Ratio: >75dB
  • Audio Output: Balanced: 0~0.5V/600 Audio Output:0~0.5V/5k
  • Power Supply: Connect Direct Power 12~14V
  • Current: 300m
